Add and modify a graph in Keynote on Apple Vision Pro

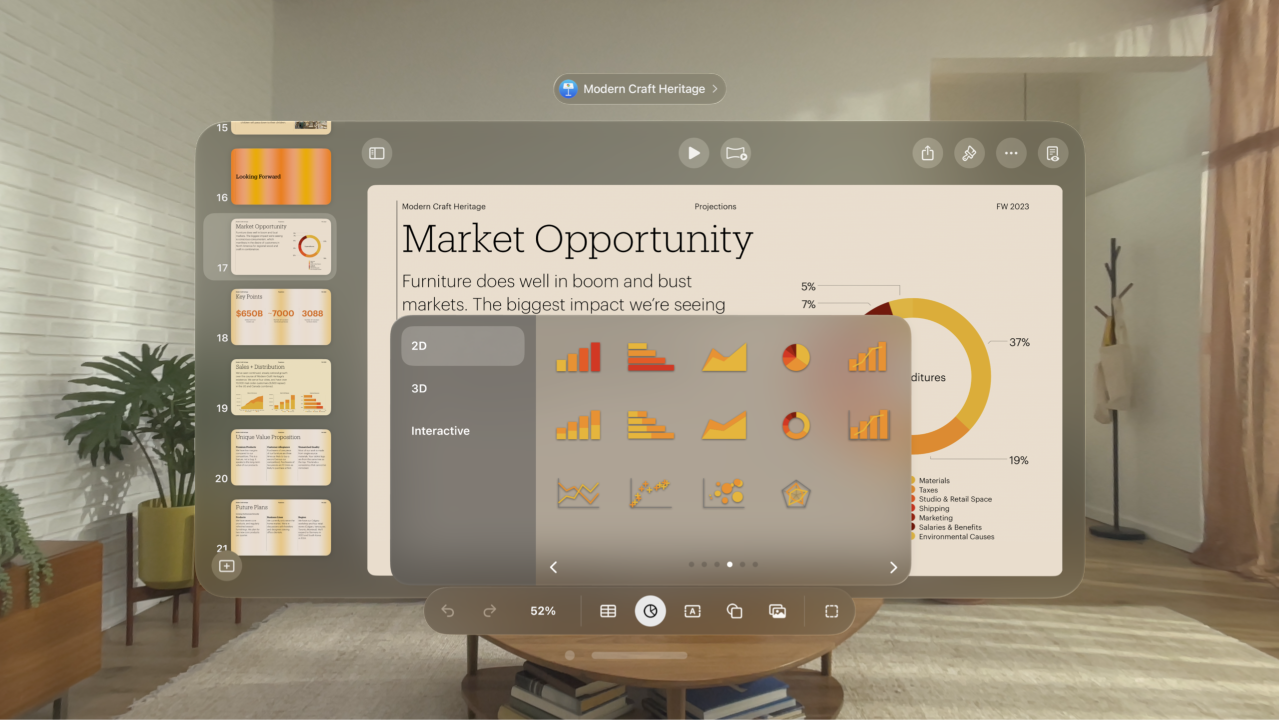

Add a graph
Tap
You can tap 2D or 3D to see the types of graphs you can add, then swipe left or right to see more options for each type of graph.
When you add a 3D graph, you see
To add data, tap
Enter data: Tap place holder text, then enter your own data.
Change whether rows or columns are plotted as a data series: Tap
If you added an interactive chart, to change the type of control used for interacting with the graph, tap the graph, tap
Add a Magic Graph effect to an interactive graph
You can animate the different data series in a graph with a Magic Chart build effect.
Tap the interactive graph, tap
Tap Magic Graph at the bottom of the window.
Tap Start, then tap an option:
On Tap: The Magic Graph effect plays when you tap the slide during the presentation.
After Transition: The Magic Graph effect plays when the slide opens during the presentation.
To see a preview of the animation, tap
Add or delete a data series
Tap the graph, tap
Do any of the following:
Add a data series: Tap cells, then enter the data for your new data series.
Remove a data series: Tap the bar for the row or column you want to delete, tap it again, then tap Delete.
Reorder data series: Pinch and drag the bar for the data series you want to move.
Tap
Switch rows and columns as data series
When you add a graph, Keynote defines the default data series for it. In most cases, if a table is square or if it’s wider than it is tall, the table rows are the default series. Otherwise, the columns are the default series. You can change whether rows or columns are the data series.
Tap the graph, tap
Tap
Tap Done to return to the graph.
Share the x-axis for multiple values along the y-axis for scatter and bubble charts
Sharing the x-axis means plotting a single kind of value along the x-axis, while allowing for multiple kinds of values plotted along the y-axis. By default, the x-axis values are shared among multiple sets of y-axis values in some types of graphs.
Tap the graph to select it, tap
Tap
Tap Done to return to the graph.
About graph downsampling
If a column, bar, line or area graph references a table with a large number of data points, the graph automatically shows a representative sample of each series to improve the performance of Keynote. Downsampling doesn’t change or remove the data in your table, and only changes the visible data points in the graph.
If your graph data is being downsampled, a message appears when you tap
If you want to see certain data points in your graph, you need to create the graph from a smaller table or a smaller selection of data from a large table.
Apply a different style to a graph
Tap the graph, then tap
Tap Graph, then tap one of the graph styles.
Change colours, shadows, spacing and other options
You can change the look of a graph by adding colours, textures, shadows and more. You can change the look of the entire graph, or change individual data series in a graph to differentiate them from other series. For bar graphs, for example, you can fill the bars in each series with a different colour or a colour gradient, apply a different outline (stroke) style and more. For scatter plots, you can change the symbol that represents each point and add connection lines between the points.
Note: You can’t change the look of a single data point in a series (a single bar in a bar chart, for example). All changes you make apply to every data point in the series.
Tap the graph, then tap
Do one of the following:
Apply a coordinated colour palette to all the data series: Tap Graph, then tap a thumbnail at the top of the Graph tab. All the colours in the chart change at once.
Apply colours, images or textures to all the data series: Tap Style, tap General, then tap Graph Colours. Tap Colours, Images or Textures, then tap a collection to apply it.
Change the colour, gradient or image for individual pieces of the graph: Tap Graph, tap Edit Series, then tap the name of the datum whose appearance you want to change. Tap Fill, then tap Preset, Colour, Gradient or Image.
The changes affect only the selected data series. To change another series, tap one of its elements, then make changes.
Change the spacing in bar or column charts: Tap Style, tap General, then pinch and drag the slider for Gaps Between Columns, Gaps Between Bars or Gaps Between Sets.
Add rounded corners to bar, column, mixed and two-axis charts: Tap Style, then pinch and drag the Rounded Corners slider, or tap the percentage under Rounded Corners and enter a new value.
Change the depth of a 3D graph and the shape of series elements: Tap Graph, then adjust the Depth slider.
Resize the centre hole of a doughnut chart: Pinch and drag the Inner Radius slider, or tap the percentage below Inner Radius and enter a new value.
Bevel the edges between series or wedges in 3D stacked and pie charts: Tap Graph, then turn on Bevels.
Change the grid style of radar charts: Tap Graph, then adjust the options below Grid Style.
Add or change data symbols in line, scatter and radar charts
You can change the symbols used to represent data in line, scatter and radar charts.
Tap the graph to select it, then tap
Tap Style, tap General, tap Data Symbol, tap Data Symbol again, then choose a symbol, or choose None to remove symbols from the graph.
To change the look of data symbols for only one data series, tap the graph to select it, tap
Tap the series whose symbol you want to change, then do any of the following:
Change the shape of data symbols: Tap Data Symbol, tap Data Symbol again, then choose a symbol, or choose None to remove symbols for this data series.
Change the size of data symbols: Tap Data Symbol, then tap
Change the colour of data symbols: Tap Data Symbol, tap Colour in the Fill section, then tap to select Preset, Colour, Gradient or Image fill. (You can only change the fill colour for some data symbols.)
Tap Use Series Stroke Colour to revert to presets.
Change the outline of the data symbols: Tap Data Symbol, turn on Stroke to add an outline, then change the style, colour and weight.
If you can’t edit a graph, you may need to unlock it. See Lock or unlock objects.
