Change gradient color and opacity in Motion
The gradient editor is a flexible and powerful tool, allowing you to create custom styles.
Download this guide: PDF
The gradient editor is a flexible and powerful tool, allowing you to create custom styles.
In Motion, click the Gradient disclosure triangle to show the gradient editor.
To change the color of a color tag in the gradient editor, do one of the following:

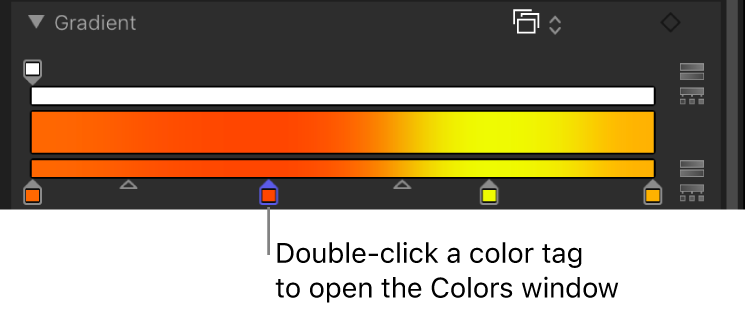

Double-click a color tag.
The Colors window appears. Use the Colors window to set a color for the tag.
Click a color tag, click the disclosure triangle to the left of Color parameter name, then adjust the Red, Green, and Blue color channel sliders.
Control-click a color tag to display the pop-up color palette. Drag the eyedropper in the palette to select a color. Drag in the lower palette to set the tag to a grayscale color.
Click a color tag, then Control-click the color well to display the pop-up color palette.
Click a color tag, click the eyedropper tool, then click a color in the canvas.

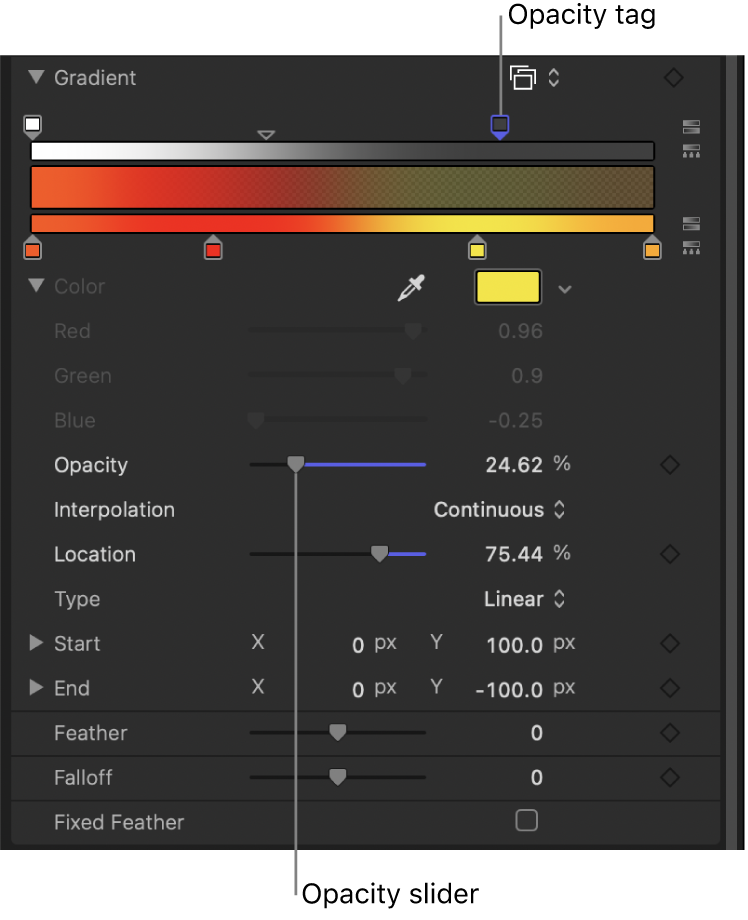

In Motion, click an opacity tag.
The Opacity slider is enabled.
Use the Opacity slider to change the level of transparency.
The gradient transparency reflects the new opacity values.
Tip: The lower the percentage of the opacity, the greater the transparency.

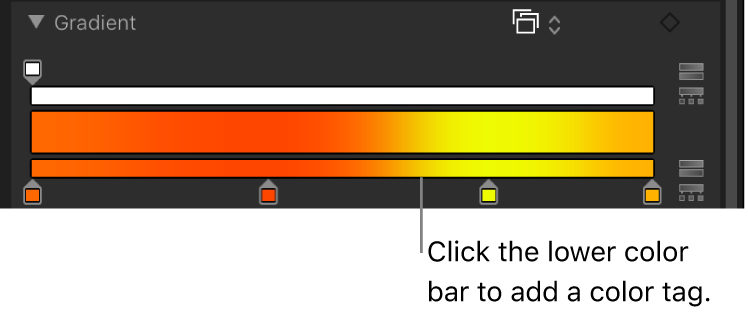

In Motion, position the pointer in the lower gradient bar where you want to add the new color, then click.
A new color tag is added to the gradient.
Note: Although the color, opacity, and position of the tags of a gradient can be animated, the number of color tags and opacity tags cannot.
In Motion, position the pointer in the opacity bar where you want to add the tag, then click.
A new opacity tag is added to the gradient. Until the value is adjusted, the gradient opacity is 100%.
In Motion, drag the tag away from the gradient bar.
The tag is removed.
