EVOC 20 PS output controls in MainStage
The Output section controls the type of signal, stereo width, and level of signal that is sent from EVOC 20 PS. The Output section also has an integrated ensemble effect processor.

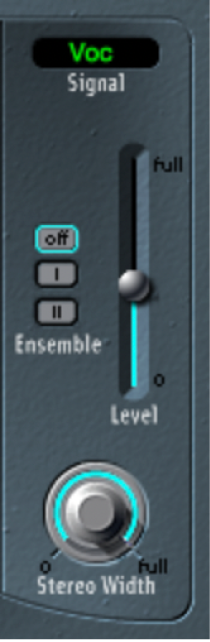

Output parameters
Signal pop-up menu: Choose the signal that is sent to the main outputs.
Voc(oder): Choose to hear the vocoder effect.
Syn(thesis): Choose to hear only the synthesizer signal.
Ana(lysis): Choose to hear only the analysis signal.
Note: The last two settings are mainly useful for monitoring purposes.
Ensemble buttons: Turn the ensemble effect on or off and determine the type of sound.
Off: Click to turn the ensemble effect off.
I: Click to obtain a special chorus effect.
II: Click to obtain a fuller and richer sound.
Level slider: Set the overall volume of the output signal.
Stereo Width knob: Distribute the output signals of the Synthesis section filter bands in the stereo field.
At the 0 position to the left, the outputs of all bands are centered.
At the centered position, the outputs of all bands ascend from left to right.
At the Full position to the right, the bands are output—alternately—to the left and right channels.
