Add template markers in Motion
Use template markers to create an intro section, outro section, looping point, or poster frame (a frame that appears as a thumbnail in the Final Cut Pro browser) in a Final Cut Pro template. You can also create a Text Edit marker to designate edit points in a title template for Final Cut Pro.

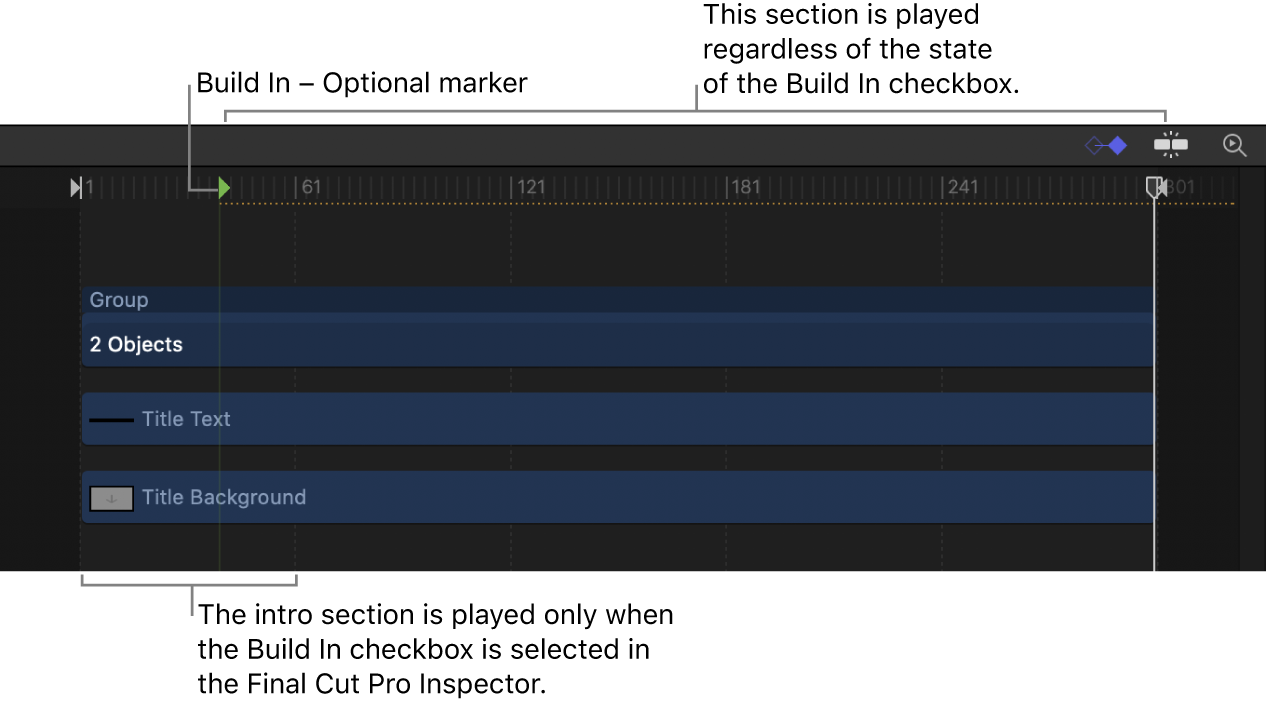

Adding a Build In marker to a template creates an intro section. When the template is applied to a clip in Final Cut Pro, frames between the beginning of the project and the Build In marker (the intro) play at the same speed as in the original Motion template. Frames after the Build In marker are retimed to match the duration of the Final Cut Pro clip.
In Motion, move the playhead to the frame where you want the template’s intro section to end, then press Shift-M.
A green project marker appears in the Timeline ruler, and a (subtle) green vertical line appears in the mini-Timeline.
Do one of the following:
Position the playhead over the marker, then choose Mark > Markers > Edit Marker.
Double-click the marker.
Control-click the marker, then choose Edit Marker from the shortcut menu.
In the Edit Marker dialog, click the Type pop-up menu and choose an option:
Build In – Mandatory: Choose this marker type to play the frames between the beginning of the project and the Build In – Mandatory marker at the same speed as in the original Motion template. Beyond the marker, the effect is time-stretched or time-shrunk to match the duration of the Final Cut Pro clip.
Build In – Optional: This marker type has the same effect as the Build In – Mandatory marker (described above), but adds a checkbox in the Final Cut Pro inspector to optionally disable the intro’s playback (frames before the marker are not played, and frames after the marker are retimed to match the duration of the Final Cut Pro clip).
The project marker becomes a Build In marker, the Timeline ruler displays a dashed gold line over the affected region, and a Build In checkbox is added to the Published Parameters list in the Publishing pane of the Project Inspector.

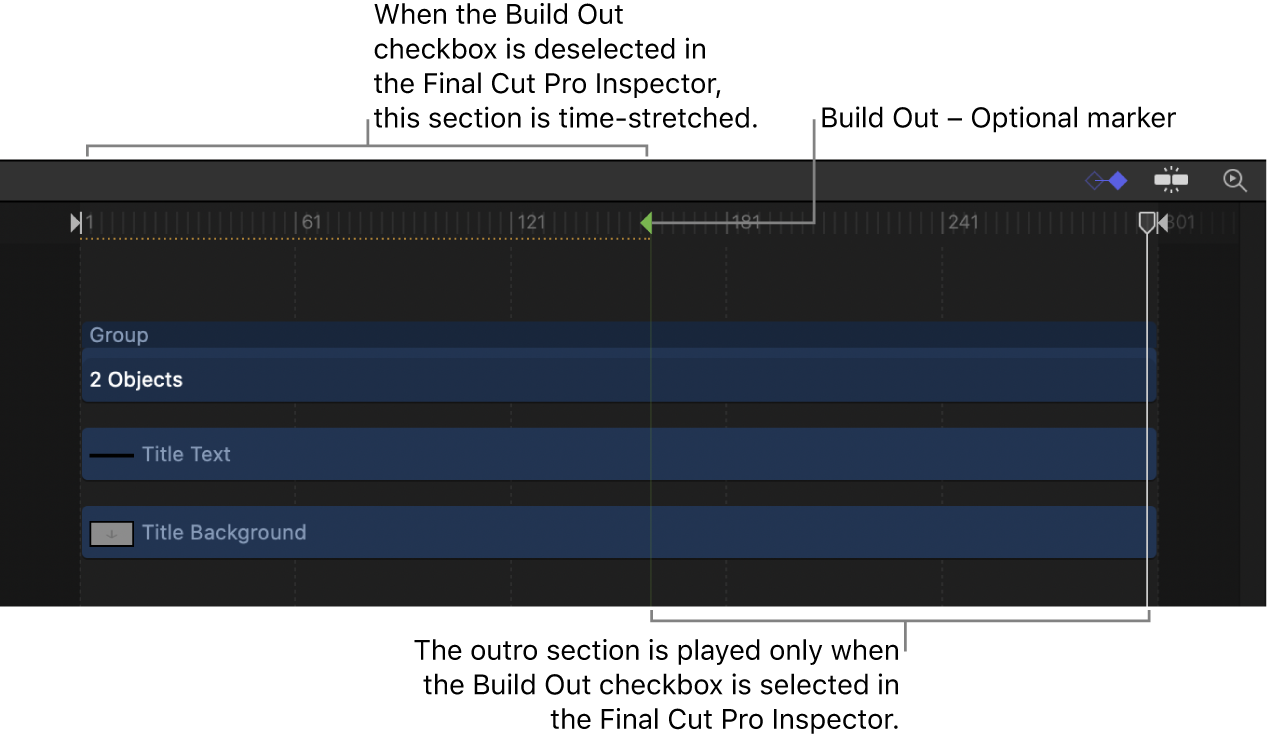

Adding a Build Out marker to a template creates an outro section. When the template is applied to a clip in Final Cut Pro, frames between the Build Out marker and the end of the project (the outro) play at the same speed as in the original Motion template. Frames before the Build Out marker are retimed to match the duration of the Final Cut Pro clip.
In Motion, move the playhead to the frame where you want the marker to appear, then press Shift-M.
A green project marker appears in the Timeline ruler, and a (subtle) green vertical line appears in the mini-Timeline.
Do one of the following:
Position the playhead over the marker, then choose Mark > Markers > Edit Marker.
Double-click the marker.
Control-click the marker, then choose Edit Marker from the shortcut menu.
In the Edit Marker dialog, click the Type pop-up menu and choose an option:
Build Out – Mandatory: Choose this marker type to play the frames between the Build Out – Mandatory marker and the end of the project at the same speed as in the original Motion template. Prior to the marker, the effect is time-stretched (or shrunk) to match the duration of the Final Cut Pro clip.
Build Out – Optional: This marker has the same effect as the Build Out – Mandatory marker (described above) but adds a checkbox in the Final Cut Pro inspector to optionally disable the outro’s playback (frames before the marker are retimed to match the duration of the Final Cut Pro clip, and frames after the marker are not played).
The project marker becomes a Build Out marker, the Timeline ruler displays a dashed gold line over the affected region, and a Build Out checkbox is added to the Published Parameters list in the Publishing pane of the Project Inspector.

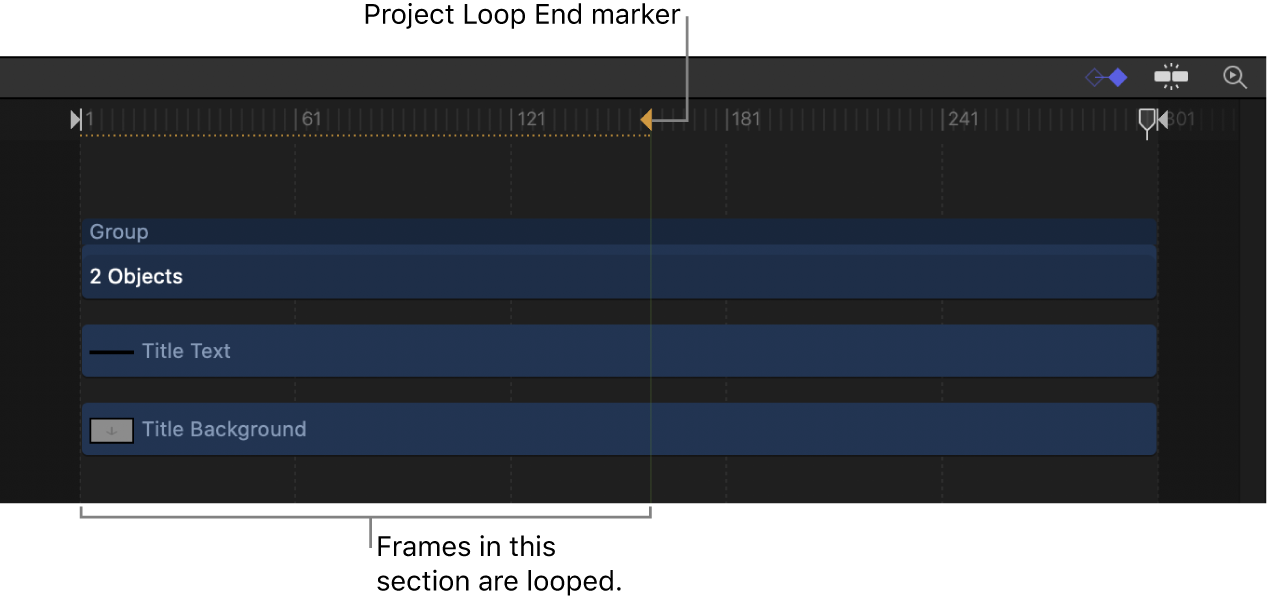

You can add a Project Loop End marker to instruct Final Cut Pro to begin looping playback at a specific frame. When playback reaches this frame, the project plays from the beginning of the project or from the Build In marker, if present. Frames beyond the Project Loop End marker are never played.
In Motion, move the playhead to the frame where you want the marker to appear, then press Shift-M.
A green project marker appears in the Timeline ruler, and a (subtle) green vertical line appears in the mini-Timeline.
Do one of the following:
Position the playhead over the marker, then choose Mark > Markers > Edit Marker.
Double-click the marker.
Control-click the marker, then choose Edit Marker from the shortcut menu.
In the Edit Marker dialog, click the Type pop-up menu, then choose Project Loop End.
The project marker becomes a Project Loop End marker, and the Timeline ruler displays a dashed gold line over the affected region.
Setting a marker type to Project Loop End changes any marker set to a Build Out type back to Standard. Similarly, if a Project Loop End marker exists, adding a Build Out marker resets the loop marker back to Standard.
To ensure sure smooth looping of animation in a template, position the Project Loop End marker at a frame in the Timeline where the animation is in a position similar to its position in the first frame of the template. For example, to loop an animated text crawl, have the text entering the left edge of the canvas in the first frame of the template and leaving the right edge of the canvas at the Project Loop End marker.
Tip: Adding a loop marker to the second frame in a template makes the effect time-invariant—the first frame of the project loops forever. This can be useful for generators that do not contain animation (such as a solid color generator), or for filters that aren’t animated by default (such as a color-correction filter).
Note: Templates with applied Time filters (Echo, Scrub, Strobe, Trails, or WideTime) should not use Loop markers, because unexpected timing results can occur.
When you apply a template in Final Cut Pro, the template is retimed to match the duration of the clip it’s applied to. The Build In and Build Out markers force Final Cut Pro to play back the intros and outros you designate at their original speed (as created in Motion). However, if you want to force Final Cut Pro to play the template at its original speed throughout, use a Project Loop End marker.
In Motion, create a template with a duration much longer than the clips it will be applied to in Final Cut Pro.
Move the playhead to the last frame in the template, then add a Project Loop End marker as described in the previous task.
When applied to a clip in Final Cut Pro, the template will play at its original speed for the duration of the clip (because the clip will end long before reaching the template’s loop point).
You can add a Poster Frame marker to instruct Final Cut Pro to use a specific frame of a template as the template thumbnail in the Final Cut Pro Effects browser, Transitions browser, or Titles browser.
In Motion, move the playhead to the frame you want to use as the poster frame, then press Shift-M.
A green project marker appears in the Timeline ruler, and a (subtle) green vertical line appears in the mini-Timeline.
Do one of the following:
Position the playhead over the marker, then choose Mark > Markers > Edit Marker.
Double-click the marker.
Control-click the marker, then choose Edit Marker from the shortcut menu.
In the Edit Marker dialog, click the Type pop-up menu, then choose Poster Frame.
Although the project marker appearance does not change, it becomes a Poster Frame marker (a tooltip appears if you move the pointer over the marker).
If a Poster Frame marker exists, adding a new Poster Frame marker resets the first marker to Standard.
You can add Text Edit markers to specify the optimal edit points for text in a title template. For example, if your title animates offscreen, you can add a Text Edit marker to quickly navigate to a frame where the text is visible in the Final Cut Pro viewer.
The Text Edit marker is only available in the Final Cut Title template.
In Motion, move the playhead to the frame where you want the marker.
Select the text to add the marker to, then do one of the following:
Choose Mark > Markers > Add Marker.
Press M.
A red object marker is added to the timebar of the selected object.
Do one of the following:
Position the playhead over the marker, then choose Mark > Markers > Edit Marker.
Double-click the marker.
Control-click the marker, then choose Edit Marker from the shortcut menu.
In the Edit Marker dialog, click the Type pop-up menu, then choose Text Edit.
Although the object marker appearance does not change, it becomes a Text Edit marker.
You can add multiple Text Edit markers to a template.
In the Final Cut Pro timeline, double-click the title to enter text-edit mode. In the viewer, use the Next Text Layer and Previous Text Layer buttons to navigate between Text Edit markers. For more information about working with titles in Final Cut Pro, see the Final Cut Pro User Guide.
In Motion, drag the marker to a new position in the Timeline ruler or timebar.
When you drag the marker, the current frame is displayed above the pointer.
In Motion, do one of the following:
Position the playhead over the marker, then choose Mark > Markers > Edit Marker.
Double-click the marker.
Control-click the marker, then choose Edit Marker from the shortcut menu.
In the Edit Marker dialog, click the Type pop-up menu, then choose a marker type.
The Build In and Build Out markers appear as small green arrows in the Timeline ruler. The Project Loop Out marker appears as a small orange arrow. At the top of the ruler, the area specified as the intro, outro, or loop section displays a gold glow.
For more information on the Edit Marker dialog, see Intro to Timeline markers.
