iPhone 16 Pro Max

Learn the location of the cameras, buttons, and other essential hardware features on iPhone 16 Pro Max.

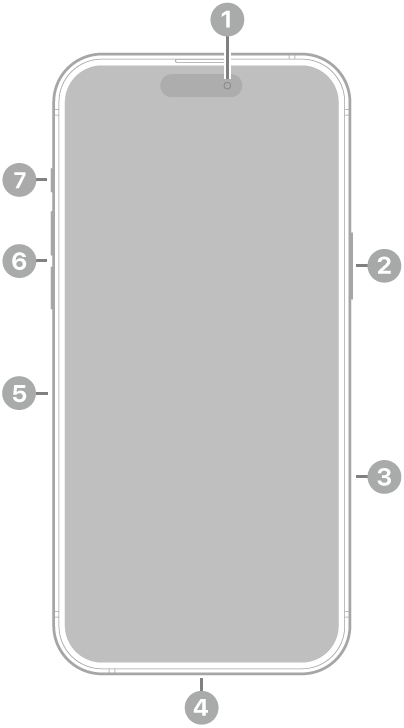

The front view of iPhone 16 Pro Max. The front camera is at the top center. The side button and the Camera Control are on the right side. The USB-C connector is on the bottom. On the left side, from bottom to top, are the SIM tray, the volume buttons, and the Action button.

Front camera

Side button

Camera Control

USB-C connector

SIM tray (available on models purchased outside the U.S.)

Volume buttons

Action button

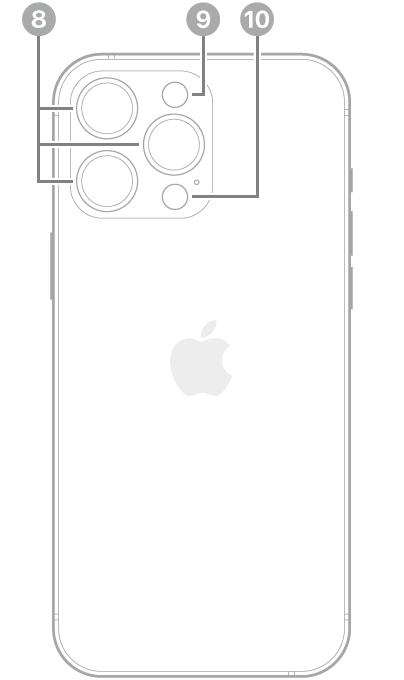

The back view of iPhone 16 Pro Max. The rear cameras, flash, and LiDAR Scanner are at the top left.

Rear cameras

Flash

LiDAR Scanner
