Vintage Clav String parameters in Logic Pro for iPad
The selected Clavinet model determines the basic qualities of the strings and has a significant bearing on the behavior and impact of each String Details parameter. This is primarily due to the different harmonic content present in each model.
Tap the Details button at the top of the plug-in to view and adjust these Vintage Clav parameters.

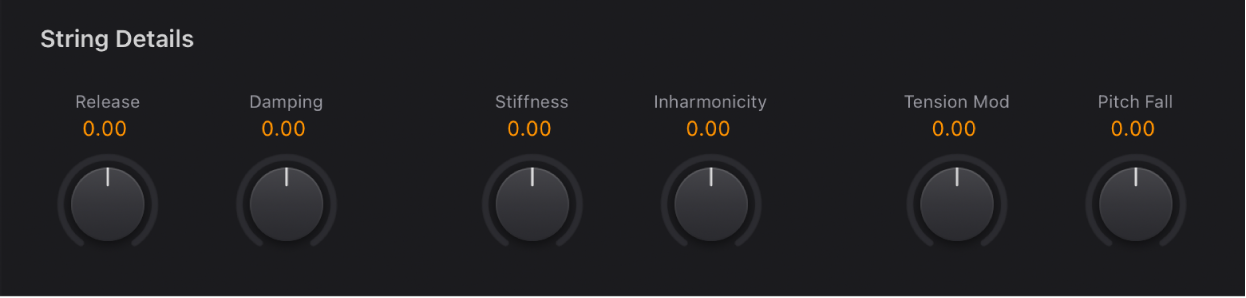

String Details parameters
Release knob and field: Set the release time of the strings, following the decay phase of a played note. Positive Release values provide a longer release time—after you have released a key.
Damping knob and field: Change the damping behavior of the strings. Damping is essentially a faster decay for the higher harmonics in a sound. Damping is directly related to the string material properties—high damping for catgut strings, medium damping for nylon strings, and low damping for steel strings. Depending on the model, damping results in a more mellow and rounded, or woody, sound. A positive Damping value makes the sound more mellow. A negative Damping value allows more high harmonics through, making the sound brighter.
Stiffness/Inharmonicity knobs and fields: Intensify or reduce inharmonic overtones. Different values let you create metallic, bell-like sounds or Yamaha DX7-style electric pianos. The controls can also be useful for attaining wood bass sounds.
Stiffness knob: Control the intensity of the stretching or spectral spreading set by the Inharmonicity control.
Inharmonicity knob: Determine the lowest harmonic—the harmonic threshold. Inharmonic content above this threshold is stretched or spread across the frequency spectrum.
Note: The fundamental note pitch is not affected by the Stiffness and Inharmonicity parameters.
Tension Mod knob and field: Add a slight upward pitch bend effect immediately a string is plucked, struck, or strummed. This type of modulation is common to stringed instruments like the Hohner D6, guitars, and so on. Use this parameter to alter the predefined tension modulation characteristic of the Clavinet model you selected. The impact of this parameter can be significant, enabling you to generate strange sound effects with Vintage Clav. You can also use it to simulate an out-of-tune clavinet, or a sitar-like sound.
Pitch Fall knob and field: Set the intensity of a D6 characteristic where the pitch of each note falls immediately after you release the key. This sonic quirk is due to the physical construction of the D6. The intensity of this effect varies with each model, but you can deactivate it by turning the Pitch Fall knob to the leftmost position.
