Take a tour of Mac mini
Your Mac mini is packed with advanced technologies.

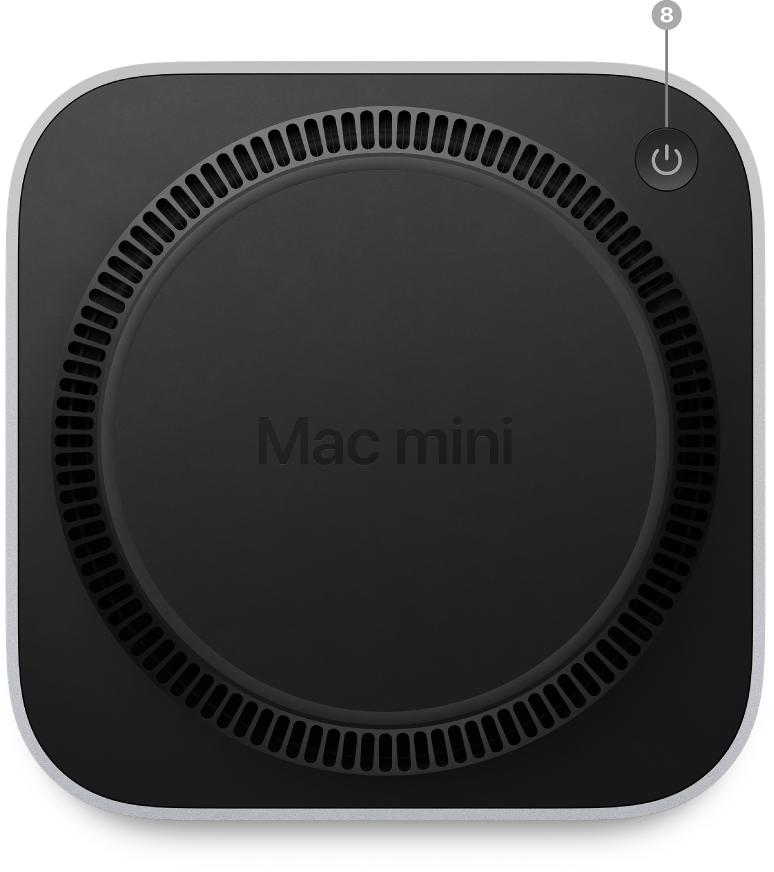

Power button: Press to turn your Mac mini on. (Choose Apple menu > Shut Down to turn off your Mac mini, or Apple menu > Sleep to put it to sleep.)

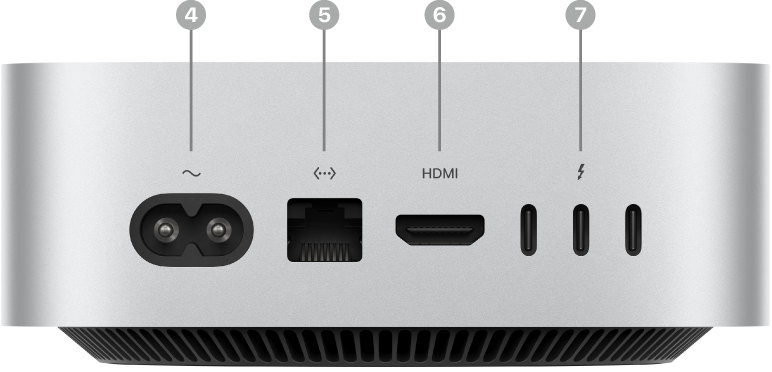

Power port: Plug the power cord into the power port on the back of your Mac mini, then plug the other end of the cord into a power outlet.
Gigabit Ethernet port: Connect a router or modem to use the internet, or connect to another computer to transfer files without using Wi-Fi.
10 Gigabit Ethernet (RJ-45) port: If your Mac mini has the optional 10 Gigabit Ethernet port, it can use Nbase-T Ethernet technology, which supports multiple data rates for speeds up to 10 Gbit/s over standard twisted-pair copper cable up to 100 meters (328 feet) in length. Depending on the device you’re connecting to, the cable type and technology used, and the cable length, the highest link speed is automatically negotiated. For example, if the device you’re connecting to is 10 Gbit/s-capable and the cable can support that speed, the two devices negotiate the 10 Gbit/s speed.
See the following chart for connection speeds and cable types. Speeds are for cables up to 100 meters (328 feet) in length, unless otherwise specified.
Up to 55 m (180 feet)
Thunderbolt 3 (USB-C) ports: Transfer data at lightning-fast speeds, and connect a display (such as the LG UltraFine 4K Display or LG UltraFine 5K Display), docking stations, an eGPU, and RAID arrays. The ports also support USB 3.1 with speeds up to 10 Gbit/s, and can charge devices, such as an iPad or a rechargeable trackpad or keyboard.
HDMI 2.0 port: Use an HDMI to DVI Adapter or HDMI cable (sold separately) to connect your Mac mini to a TV or external display.
USB 3.1 ports: Connect an iPad, iPhone, iPod, digital camera, external storage device, or printer. The Mac mini USB 3 ports support USB 3 and USB 2 devices.
3.5 mm headphone jack: Plug in stereo headphones or speakers to experience high-quality sound while listening to music or watching movies. Or plug in an analog headset with a built-in mono microphone to make audio and video calls.
Status indicator light: A steady white light indicates that your Mac mini is awake or in sleep; no light indicates that your Mac mini is switched off.
