LaTeX and MathML are supported by iBooks Author beginning with version 2.0. iBooks Author supports all LaTeX commands that can be converted to MathML with blahtex. Additional supported LaTeX extensions are listed below.
Note: LaTeX generally requires equations to be enclosed in math mode command such as the examples listed below. To make equation authoring easier, iBooks Author's equation editor is in math mode by default, so it isn't necessary to add math mode commands to your equations.
- \begin{math} … \end{math}
- \begin{displaymath} … \end{displaymath}
- \begin{equation} … \end{equation}
- $ … $
- $$ … $$
- \( … \)
- \[ … \]
If you want to add text to an equation in iBooks Author that inherits the paragraph style, use \text{…}. Nesting equations inside \text{...} is not supported.
In math mode, blahtex accepts only ASCII characters; however, blahtex accepts non-ASCII characters in text mode. For more information on specific characters, such as the copyright symbol and characters with accent marks, see the blahtex Manual, 2.22.
Supported LaTeX commands (extensions to blahtex) and MathML elements and attributes are listed below.
LaTeX commands
These additional LaTeX commands (extensions to blahtex) are supported in iBooks Author:
| Command or symbol |
|---|
| \phantom{} |
| \color |
| \cancel |
| \underrightarrow, \underleftarrow, \underleftrightarrow |
| \lneq, \gneq, \lvertneq, \gvertneq |
| \thinspace, \medspace, \thickspace, \negthinspace, \negmedspace, \negthickspace |
| "\:", "\,", "\;", "\!", "\ " |
| \lmoustache, \rmoustache |
| \lgroup, \rgroup |
| \brace, \brack |
| \xleftarrow, \xrightarrow |
| \dddot, \ddddot |
These LaTeX commands are NOT supported:
| Command or symbol | Notes |
|---|---|
| \mathring{} | |
| \copyright | Unicode symbol; works in text mode only |
| \pounds | Unicode symbol; works in text mode only |
| \ae, \AE | |
| \smallint | |
| \diagup, \diagdown | |
| \idotsint | |
| \euro | Unicode symbol; works in text mode only |
| \varGamma | |
| \cal | |
| \mathml{} | |
| \left | |
| \right | |
| \center | |
| [lrc] in \aligned | |
| \fillin | |
| \strut | |
| \vphantom | |
| \hphantom | |
| \smash | |
| \dag, \ddag | \dagger, \ddagger supported |
| {split} | |
| \hspace | Use "\:", "\,", "\;", or \phantom{} |
| \mspace | |
| \xleftarrow, \xrightarrow | |
| \centernot | |
| \buildrelover | Use \overset, \underset |
| \owns | |
| \tabular-related environments | Limited support for \matrix and \aligned |
| \sideset | |
| \pmb |
These LaTeX packages are NOT supported:
| Package | Notes |
|---|---|
| cancel | Use \cancel |
| ams | Use \underrightarrow, \underleftarrow, \underleftrightarrow |
| centernot |
MathML elements
These MathML elements are supported in iBooks Author:
| Element | Notes |
|---|---|
| mo | |
| mi | |
| mn | |
| mrow | |
| menclose | Not all forms of enclosing are supported |
| mtable | Not all attributes are supported |
| mtr | |
| mtd | |
| mfrac | |
| msup | |
| msub | |
| msubsup | |
| munder | |
| mover | |
| munderover | |
| mstack | |
| msrow | |
| msgroup | |
| mscarries | |
| mscarry | |
| msline | |
| mlongdiv | |
| mpadded | |
| mspace | |
| maction | iBooks Author supports the first MathML child and ignores the rest |
| mphantom | |
| mfenced | |
| mroot | |
| msqrt | |
| none | |
| mstyle | |
| mtext | |
| ms | |
| maligngroup | |
| malignmark |
These MathML elements are partially supported:
| Element | Notes |
|---|---|
| mlabeledtr | Treated as <mtr> with the first child ignored |
| semantics | Treated as row |
| annotation | Effectively ignored |
These MathML elements are NOT supported in iBooks Author:
| Element | Notes |
| mmultiscripts | |
| mprescripts | |
| mglyph | |
| merror | |
| {ContExp} | Content MathML elements are not supported. See http://www.w3.org/TR/MathML3/appendixa.html for details of which elements are covered by {ContExp} |
MathML attributes
These MathML attributes are supported by iBooks Author:
| Element | Attribute | Default value inheritable from <mstyle> | Values (Value syntax if subset of spec) |
|---|---|---|---|
| * | mathcolor | yes | |
| mstyle | scriptlevel | no | |
| mstyle | display | no | |
| mstyle | scriptminsize | no | |
| mstyle | scriptsizemultiplier | no | |
| mstyle | <attributes specified with default value inheritable> | n/a | |
| mo | lspace | yes | |
| mo | rspace | yes | |
| mo | largeop | yes | |
| mo | minsize | yes | |
| mo | maxsize | yes | |
| mo | accent | yes | |
| mo | movablelimits | yes | |
| mo | symmetric | yes | |
| mo | stretchy | yes | |
| mo | form | yes | |
| mspace | width | yes | |
| mspace | height | yes | |
| mspace | depth | yes | |
| ms | lqoute | yes | |
| ms | rqoute | yes | |
| mfrac | linethickness | yes | |
| mfrac | numalign | yes | |
| mfrac | denomalign | yes | |
| mover | accent | yes | |
| mover | align | yes | |
| munderover | accent | yes | |
| munderover | underaccent | yes | |
| munder | accentunder | yes | |
| munder | align | yes | |
| mtable | rowalign | yes | |
| mtable | columnalign | yes | |
| mtable | columnspacing | yes | |
| mtable | displaystyle | yes | |
| mtr | rowalign | yes | |
| mtr | columnalign | yes | |
| mtd | rowalign | yes | |
| mtd | columnalign | yes | |
| mstack | align | yes | top | bottom | center | baseline | axis |
| msrow | position | yes | |
| msgroup | position | yes | |
| msgroup | shift | yes | |
| mscarries | position | yes | |
| mscarries | crossout | yes | updiagonalstrike | downdiagonalstrike | horizontalstrike | verticalstrike |
| mscarry | crossout | yes | updiagonalstrike | downdiagonalstrike | horizontalstrike | verticalstrike |
| msline | length | yes | |
| msline | position | yes | |
| mpadded | height | no | |
| mpadded | depth | no | |
| mpadded | width | no | |
| mpadded | lspace | no | |
| mpadded | voffset | no | |
| mfenced | open | yes | |
| mfenced | close | yes | |
| mfenced | separators | yes | |
| maligngroup | groupalign | yes | |
| malignmark | edge | yes |
These MathML attributes are partially supported by iBooks Author:
| Element | Attribute | Default value inheritable from <mstyle> | Values (Value syntax if subset of spec) | Notes |
|---|---|---|---|---|
| mo, mn, mi | mathvariant | yes | Not supporting initial, stretched, looped, tailed | |
| mtable | align | no | top | bottom | center | baseline | axis | rownumber not supported |
| menclose | notation | yes | updiagonalstrike | downdiagonalstrike | horizontalstrike | verticalstrike | https://developer.mozilla.org/en/MathML/Element/menclose |
| mlongdiv | longdivstyle | no | lefttop |
These MathML elements are NOT supported:
| Element | Attribute | Notes |
| * | mathbackground | |
| mstyle | infixlinebreakstyle | |
| mstyle | veryverythinmathspace, verythinmathspace, thinmathspace, mediummathspace, thickmathspace, verythickmathspace, veryverythickmathspace | Depreciated in MathML 3. |
| mi, mn, mo, ms, mstyle, mtext | mathsize | |
| mi, mn, mo, ms, mstyle, mtext | dir | |
| mi, mn, mo, ms, mstyle, mtext | fontfamily, fontweight, fontstyle, fontsize, color, background | Depreciated in MathML 3. |
| mo | linebreak | |
| mo | lineleading | |
| mo | linebreakstyle | |
| mo | linebreakmultchar | |
| mo | identalign | |
| mo | identshift | |
| mo | identtarget | |
| mo | identalignfirst | |
| mo | identshiftfirst | |
| mo | identalignlast | |
| mo | identshiftlast | |
| mo | fence | Doesn't affect visual layout |
| mo | separator | Doesn't affect visual layout |
| mspace | linebreak | |
| mfrac | bevelled | |
| mtable | groupalign | |
| mtable | alignmentscope | |
| mtable | columnwidth | |
| mtable | width | |
| mtable | rowspacing | |
| mtable | rowlines | |
| mtable | columnlines | |
| mtable | frame | |
| mtable | framespacing | |
| mtable | equalrows | |
| mtable | equalcolumns | |
| mtable | side | |
| mtable | minlabelspacing | |
| mtr | groupalign | |
| mtd | rowspan | |
| mtd | columnspan | |
| mtd | groupalign | |
| mstack | stackalign | |
| mstack | charalign | |
| mstack | charspacing | |
| mlongdiv | position | |
| mlongdiv | shift | |
| mscarries | location | |
| mscarries | scriptsizemultiplier | |
| mscarry | location | |
| msline | leftoverhang | |
| msline | rightoverhang | |
| msline | mslinethickness | |
| msub | subscriptshift | |
| msup | superscriptshift | |
| msubsup | superscriptshift | |
| msubsup | subscriptshift | |
| mrow | ltr | |
| maction | selection | |
| maction | actiontype |
Sample equations
Basic math
| LaTeX | Renders as |
|---|---|
0.15 \bullet \frac{1}{8}
|
![]() |
-22 \div 11 |
![]() |
2x + 3y \ge -21 |
![]() |
3(b-5) < -6(b+5) |
|
\left \{ 6\frac{4}{5}, \sqrt{49}, 6.
\overline{3}, \sqrt57 \right \}
|
![]() |
Alignment
| LaTeX | Renders as |
|---|---|

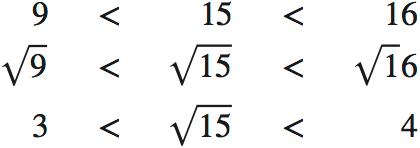

\begin{aligned}
9 && < && 15 && < && 16 \\
\sqrt{9} && < && \sqrt{15} && < && \sqrt16 \\
3 && < && \sqrt{15} && < &&4
\end{aligned}
|
![]() |
\begin{aligned}
\mbox{first number} & & \mbox{second number}
\\
10 \mbox{\phantom{=digit}} & \cdot &
9 \mbox{\phantom{=diiigit}} &\end{aligned}
Note: A nice trick for aligning equation elements is to use \mbox{\phantom{space}}. The contents inside the brackets (space) will account for the amount of white space created. In the example above, adding extra characters to =diigit gives more white space in between the 10 • 9. |
![]() |
\begin{aligned}
N & = 0.555…\\
{\color{red}10}N & = {\color{red}10}(0.555…) \\
10N & = 5.555… \\
\end{aligned}
|
![]() |
Color
| LaTeX | Renders As |
|---|---|
\begin{aligned}
N & = 0.555…\\
{\color{red}10}N & = {\color{red}10}(0.555…)
\\
10N & = 5.555…
\\
\end{aligned}
|
![]() |
\sum_{\color{0A7C10}n=0}^{\color{red}\infty}
a_n x^n
|
![]() |
Integrals
| LaTeX | Renders As |
|---|---|
\textstyle \int\limits_{-N}^{N} e^x\, dx
|
![]() |
\int\limits_{-N}^{N} e^x\, dx
|
![]() |
Note: \textstyle differentiates between inline and display equations.
Matrices
| LaTeX | Renders As |
|---|---|
\begin{matrix}
a & b \\
c & d \\
\end{matrix}
|
![]() |

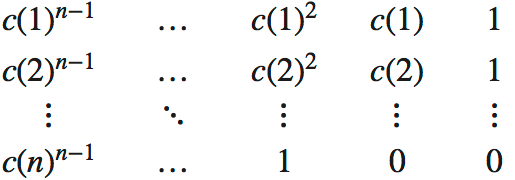

\begin{matrix}
c(1)^{n-1} && \dots && c(1)^2 &&
c(1) && 1\\
c(2)^{n-1} && \dots && c(2)^2 &&
c(2) && 1\\
\vdots && \ddots && \vdots &&
\vdots && \vdots\\
c(n)^{n-1} && \dots && 1 && 0 &&
0\\
\end{matrix}
|
![]() |
Note: LaTeX offers several tags that can be used to create matrices. iBooks Author supports only the matrix tag. The following tags are unsupported: cases, vmatrix, bmatrix, pmatrix, aligned.
Common equation elements
| LaTeX | Renders as |
|---|---|
\(\Delta S^\circ=\sum S^{\circ }products - \sum
S^{\circ }reactants\)
|
|
\(HF\left( aq\right) +H_{2}O\left( l\right)
\rightleftharpoons H_{3}O^{+}\left( aq\right)
+F_{-}\left( aq\right)\)
|
|
\nabla \times \overrightarrow{\mathbf{B}} -
\frac{1}{C} \frac{\delta
\overrightarrow{\mathbf{E}}}{\delta t} = 4\pi
\rho
|
![]() |
x={-b\pm\sqrt{b^2-4ac} \over 2a}
|
![]() |
Long form arithmetic
| MathML | Renders as |
|---|---|
<?xml version="1.0"?>
<math xmlns="http://www.w3.org/1998/Math/MathML">
<mstack>
<mscarries location='nw'>
<none/>
<mscarry crossout='updiagonalstrike' location='n'>
<mn>2</mn>
</mscarry>
<mn>1</mn>
<none/>
</mscarries>
<mn>2,327</mn>
<msrow> <mo>-</mo> <mn> 1,156</mn> </msrow>
<msline/>
<mn>1,171</mn>
</mstack>
</math>
|
![]() |
<math xmlns="http://www.w3.org/1998/Math/MathML"> <mlongdiv> <mn> 12 </mn> <mn> 16.5 </mn> <mn> 198 </mn> <msgroup position='1' shift='-1'> <msgroup> <mn> 12</mn> <msline length='2'/> </msgroup> <msgroup> <mn> 78</mn> <mn> 72</mn> <msline length='2'/> <mn> 6.0</mn> <mn> 6.0</mn> </msgroup> <msgroup position='-1'> <!-- extra shift to move to the right of the "." --> <msline length='3'/> <mn> 0</mn> </msgroup> </msgroup> </mlongdiv> </math> |
![]() |
<math xmlns="http://www.w3.org/1998/Math/MathML">
<mstack charspacing="loose">
<mscarries position="1">
<mn>1</mn>
</mscarries>
<mscarries position="1">
<mn>1</mn>
<mn>3</mn>
</mscarries>
<mn>435</mn>
<msrow>
<mo>×</mo>
<none/>
<mn>25</mn>
</msrow>
<msline/>
<mscarries position="2">
<mn>1</mn>
</mscarries>
<mn>2185</mn>
<msrow position="1">
<mn>874</mn>
</msrow>
<msline/>
<mn>10925</mn>
</mstack>
</math>
|
![]() |
Note: iBooks Author doesn't support LaTeX for long division and remainders. To work with long division and remainders, you must use MathML.
